Finned tube air heat exchangers

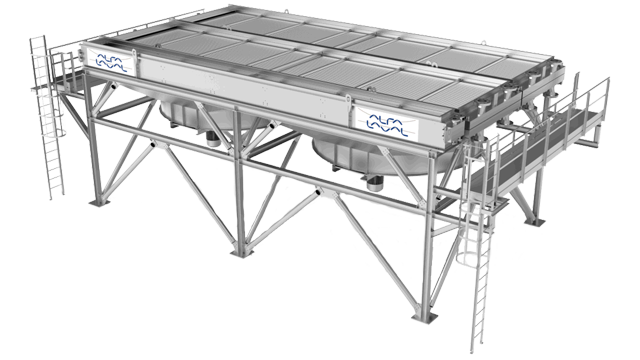

With an Alfa Laval finned tube air heat exchanger you get a robust cooler that will deliver high performance for many years to come. Our product range covers most applications in oil & gas, data centers, hydrogen, RNG and CCUS. We supply both standardized and fully customized, engineered-to-order solutions. Thanks to their flexible designs, we can configure our heat exchangers to match your specific operating conditions, ensuring reliable operation, low operating costs and high performance.

ACE Model A 640x360

Benefits

  • Customized to your requirements
  • Very low energy consumption
  • Robust heat exchangers, built for tough duties
  • High performance
  • Low maintenance requirements

Discover our range of tailored air cooling solutions

.

Поговорить со специалистом

Мы с удовольствием расскажем о преимуществах теплообменника Alfa Laval с разрезными ребрами и о том, как можно оптимизировать ваше производство.

contact expert

Комплекты для обслуживания и запасные части

Вам нужны запасные части или техобслуживание на месте? Мы можем вам помочь! Поговорите с одним из наших сервисных инженеров.

Bolts 640x360

OEM spares available 24/7 in our ACE Webshop

Genuine spare parts for your ACE equipment are critical to uptime and profitability. At the Alfa Laval web shop, OEM quality spares are just a few clicks away. It’s easy to find the right part. Simply search using the serial number of your Alfa Laval ACE or, for any other brand of air-cooled heat exchanger, using the part specifications.

ACE-webshop-new-vignette
.

Модели

Alfa Laval ACE, модель A

Alfa Laval air-cooled exchanger Model A

  • Вертикальные, наклонные секции и вентилятор с вертикальным выбросом воздуха
  • Наклонные секции обеспечивают оптимальное положение центра тяжести для более безопасной погрузки и транспортировки
  • Поставляется с легким алюминиевым защитным ограждением вентилятора для повышения безопасности при обслуживании

Скачать лифлет по продукту

Alfa Laval ACE, модель С

Alfa Laval air-cooled exchanger Model C

  • Вертикальные секции и вентилятор с горизонтальным выбросом воздуха
  • Экономичная и компактная альтернатива моделям с вертикальным выбросом воздуха
  • Легкий доступ к секции охладителя во время обслуживания

Скачать лифлет по продукту

Alfa Laval ACE, модель Е

Alfa Laval air-cooled exchanger Model E

  • Горизонтальные секции и вентиляторы с вертикальным выбросом воздуха
  • Выпускаемые конфигурации имеют от одного до четырех вентиляторов
  • Поставляется с легкими алюминиевыми защитными ограждениями вентиляторов для повышения безопасности при обслуживании
  • Электропривод, позволяющий регулировать скорость вращения, для точного контроля скорости воздуха и энергопотребления

Скачать лифлет по продукту

Alfa Laval ACE, модель J

Alfa Laval air-cooled exchanger Model J

  • Вертикальные секции и вентилятор с вертикальным выбросом воздуха
  • Легкий доступ к секции охладителя во время обслуживания
  • Направляющий диффузор вентилятора позволяет эффективно переводить воздушный поток из горизонтального направления в вертикальное

Скачать лифлет по продукту

Alfa Laval ACE, модель T

Alfa Laval air-cooled exchanger Model T

  • Горизонтальные секции и вертикальные вентиляторы с вертикальным выбросом воздуха
  • Выпускаемые конфигурации имеют от одного до пяти вентиляторов
  • Поставляется с легкими алюминиевыми защитными ограждениями вентиляторов для повышения безопасности при обслуживании
  • Относительно небольшая ширина для удобства транспортировки

Скачать лифлет по продукту

Alfa Laval ACE, модель V

Alfa Laval ACE Model V

  • Наклонные секции и горизонтальные вентиляторы с вертикальным выбросом воздуха.
  • Модульные вентиляторные отсеки, всасывающие поток воздуха, могут иметь длину секции до 18 м.
  • Благодаря специальной конструкции снижаются затраты на транспортировку и уменьшается площадь участка для монтажа оборудования, по сравнению с вариантами горизонтального расположения секций.
  • Стандартные вентиляторы с частотно-регулируемым приводом заранее подключены к системе управления, установленной на агрегате, что снижает эксплуатационные расходы.

Скачать лифлет по продукту

Alfa Laval Olmi, модель G

Alfa Laval Olmi air heat exchanger Model G

  • Модульная конструкция, обеспечивающая быстрый заказ и доставку
  • Возможность создания различных конфигураций
  • Конструкция предусматривает удобство транспортировки на обычном грузовике или в контейнере длиной 40 фут
  • Быстрый и простой монтаж

Воздухоохладитель Alfa Laval Olmi API 661

Alfa Laval Olmi air heat exchanger API 661

  • Разработанные на заказ агрегаты для работы в самых неблагоприятных условиях
  • Работа при температуре до 400°C и давлении до 700 бар
  • Изготавливается из многих материалов, включая титан
  • Полностью собранные модульные блоки

Case story: Upgrade brought lower operating costs and reduced noise levels

Substantial savings in power consumption as well as reduced noise and vibration levels were the results when the fans, motors and transmissions of a 60-cell system of air-cooled heat exchangers in a European fertilizer plant were upgraded. Alfa Laval Olmi´s service organization handled the entire upgrade from initial planning to installation.

Fan blades on an air-cooled heat exchanger

Air cooled heat exchanger educational courses

Check out our online and expanding course curriculum designed to educate the user on all key aspects of designing, buying and owning an air cooled heat exchanger. Quizzes are available to test your knowledge. Pass the quiz and you will receive a course certificate!

ART 640x360

Устойчивая эффективность

Повысьте надежность и рентабельность с теплообменниками Alfa Laval с воздушным охлаждением. Ознакомьтесь с нашей брошюрой, чтобы узнать, как мы можем помочь вам повысить устойчивость работы вашего производственного предприятия.

Air brochure 630x360

Принцип работы

.

Working principle ACE Model E, Olmi API 661 and Olmi Model G

Working principle ACE Model A

The hot medium (e.g. hot water or lube oil) flows through the heat exchanger within the large number of externally finned tubes. One or more fans force air across the tubes and the heat from the hot medium is transferred to the air. To maximize heat transfer, the tubes are equipped with fins that increase the area in contact with the air.

Alfa Laval offers a great variety of designs in terms of:

  • Number of fans
  • Orientation of the fans (horizontal or vertical)
  • Orientation of the tube sections (horizontal, vertical or sloped)
  • Induced or forced draft
  • Configurable plot sizes

Forced draft design

In heat exchangers with a forced draft configuration the air passes the fan before it passes the finned tubes and the air is pushed through the tube bundles. The advantages with this include:

  • The fan and belt is not exposed to the hot exhaust air, which increases component lifetimes.
  • No temperature limit on the exiting air.
  • When the tube sections are horizontal, the fan is placed under the tubes, making access during service easier and costs for structure lower.
  • Energy consumption is often lower as compared to induced draft units.



Induced draft design

In a heat exchanger operating with induced draft the fan is placed after the tube sections, meaning air is pulled through the tube bundles. The advantages with this design are:

  • A more even distribution of the air flow through the tube bundles.
  • The risk of recirculating hot exhaust air is much lower thanks to a higher exit air velocity than in a forced-draft heat exchanger.

The combinations of forced/induced draft and the orientation of the fans and tube sections all have their individual advantages and ideal uses. Please contact your Alfa Laval representative for a discussion about the optimum solution for your specific conditions and application.



АСЕ — принцип работы

Alfa Laval ACE how it works

Olmi — принцип работы

Alfa Laval Olmi air-cooler

.

Уникальные особенности

Alfa Laval finned tube air heat exchangers with HyperFin









HyperFin

Конструкция с разрезными ребрами повышает теплообмен.

Узнать больше

Alfa Laval finned tube air heat exchangers with SealTight








SealTight

Effectively prevents leaks from the plugs in the header box.

Find out more

ALOnsite









ALOnsite™

Полноценное техническое обслуживание на месте силами опытных инженеров в любой точке земного шара.

Узнать больше
